Our Products & specifications
Customized environmental test chambers for various industries (from -70°C to +300°C)
Products

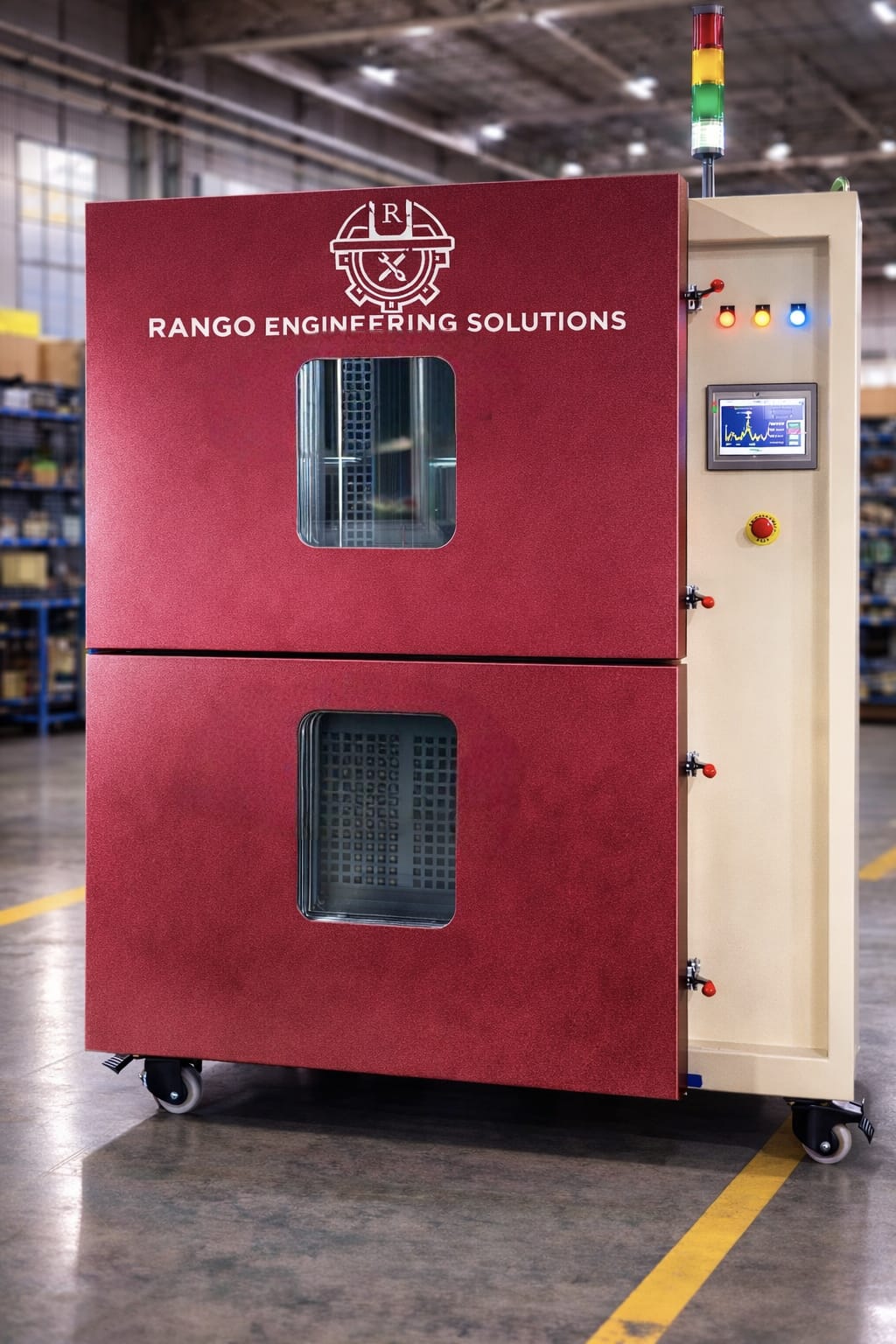

Thermal Shock Chamber
- Cold Zone Temperature Range: Ambient to –70 °C
- Hot Zone Temperature Range: Ambient to +200 °C
- Temperature Recovery Time: 8–10 minutes
- Basket Transition Time: Less than 10 seconds
- PLC Control System
- Stainless Steel Interior

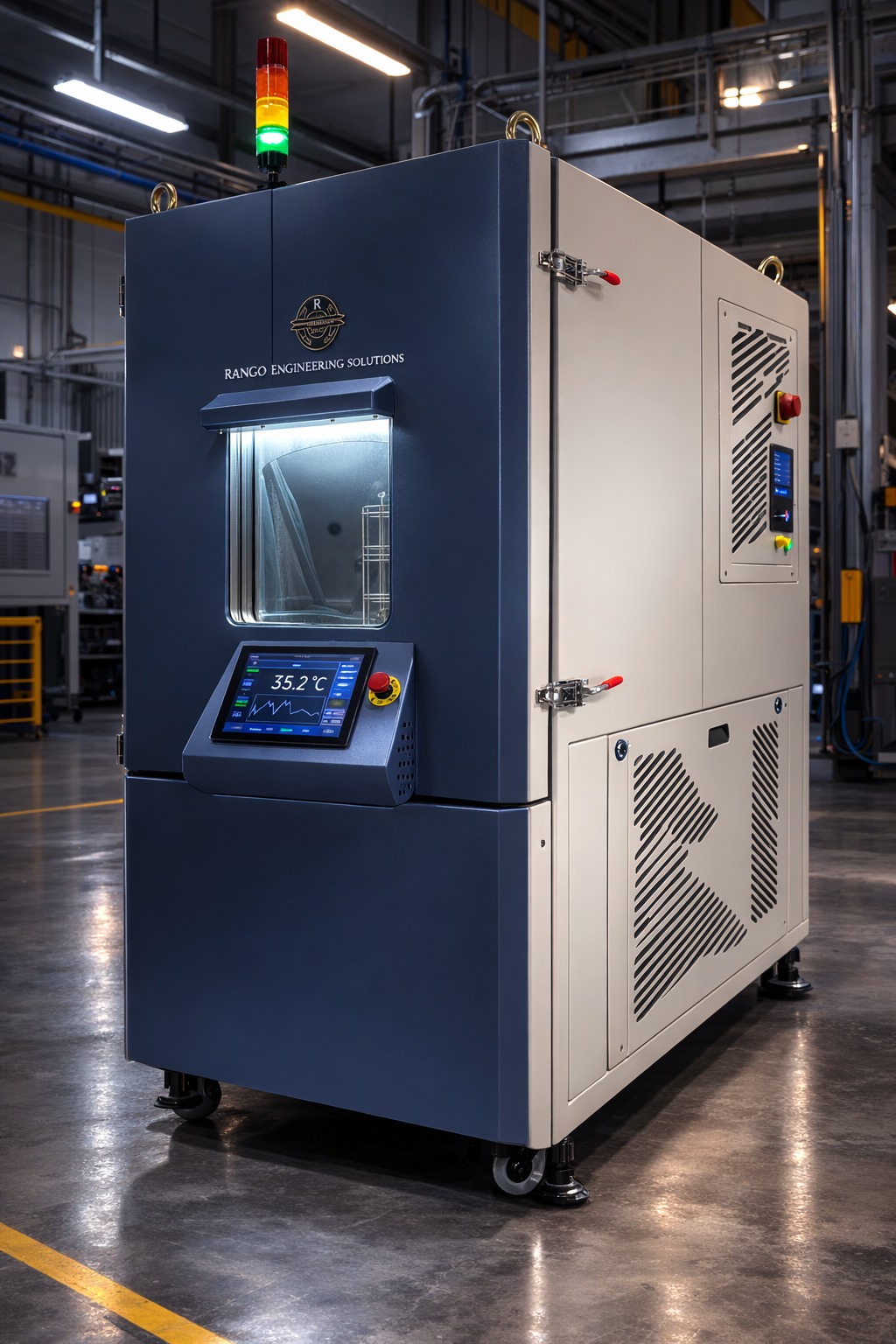

Climatic Test Chamber
- Wide Thermal Envelope: Reliable performance across a broad range from -70°C to +150°C.
- Atmospheric Precision: Accurate humidity regulation between 10% and 98% RH.
- Maximum Accessibility: Equipped with a Full Front Opening door system for seamless equipment integration
- Modular Loading: Includes a height-adjustable tray frame to provide flexible interior configurations for varying sample sizes.
- Touch Screen HMI
- Energy Efficient Design

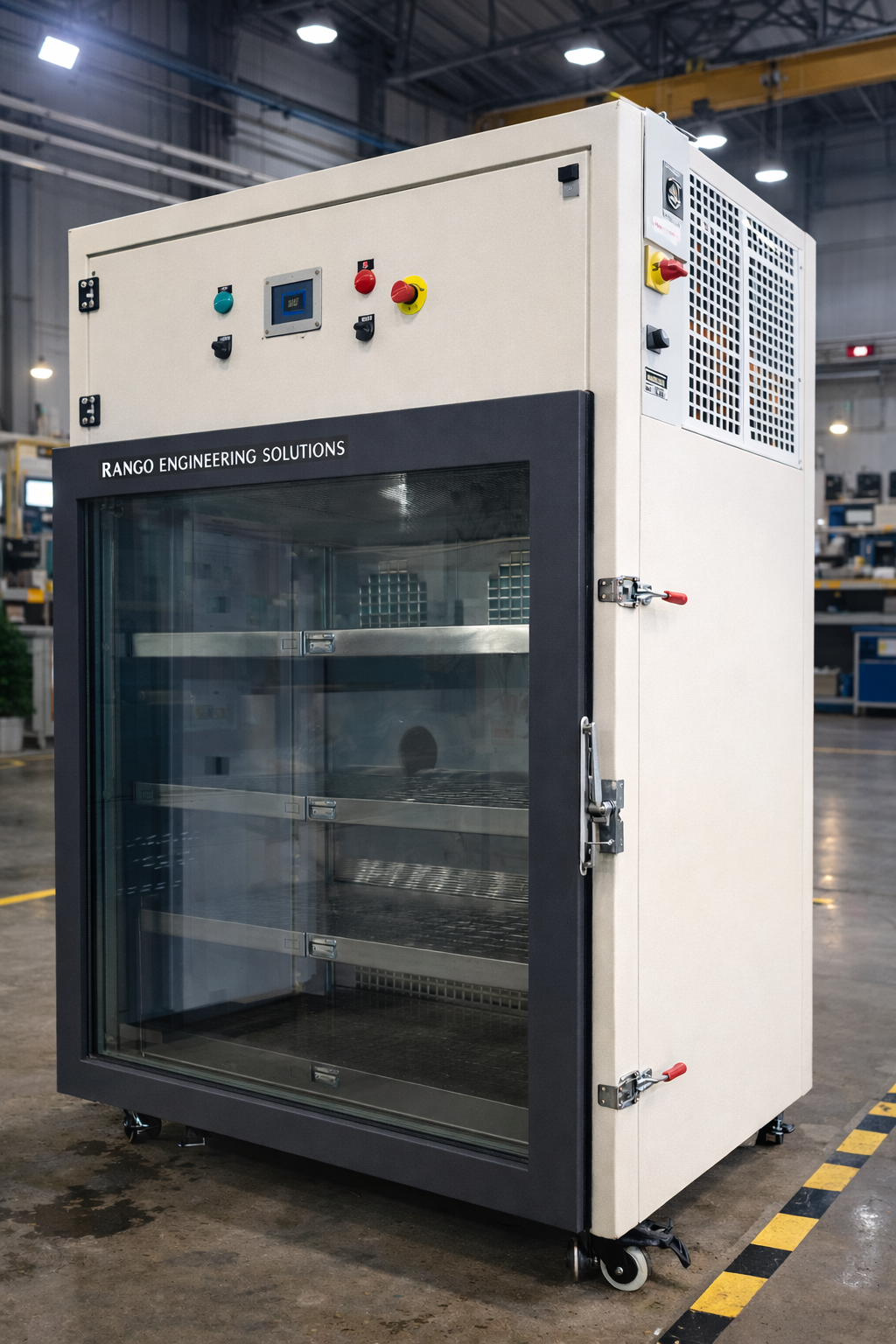

Freezer Cabinet
- Temp Range: low temp as per needs ( till -20°C).
- Structure: Floor-mounted with heavy-duty braked castors
- Finish: SS304 interior / MS Powder-coated exterior
- Door: Full front opening with insulated sub-doors
- Seal: High-density PUF insulation & silicone gaskets
- Control: Yudian Digital PID with PT100 sensor
- Safety: Audio-visual hooter/buzzer deviation alarm

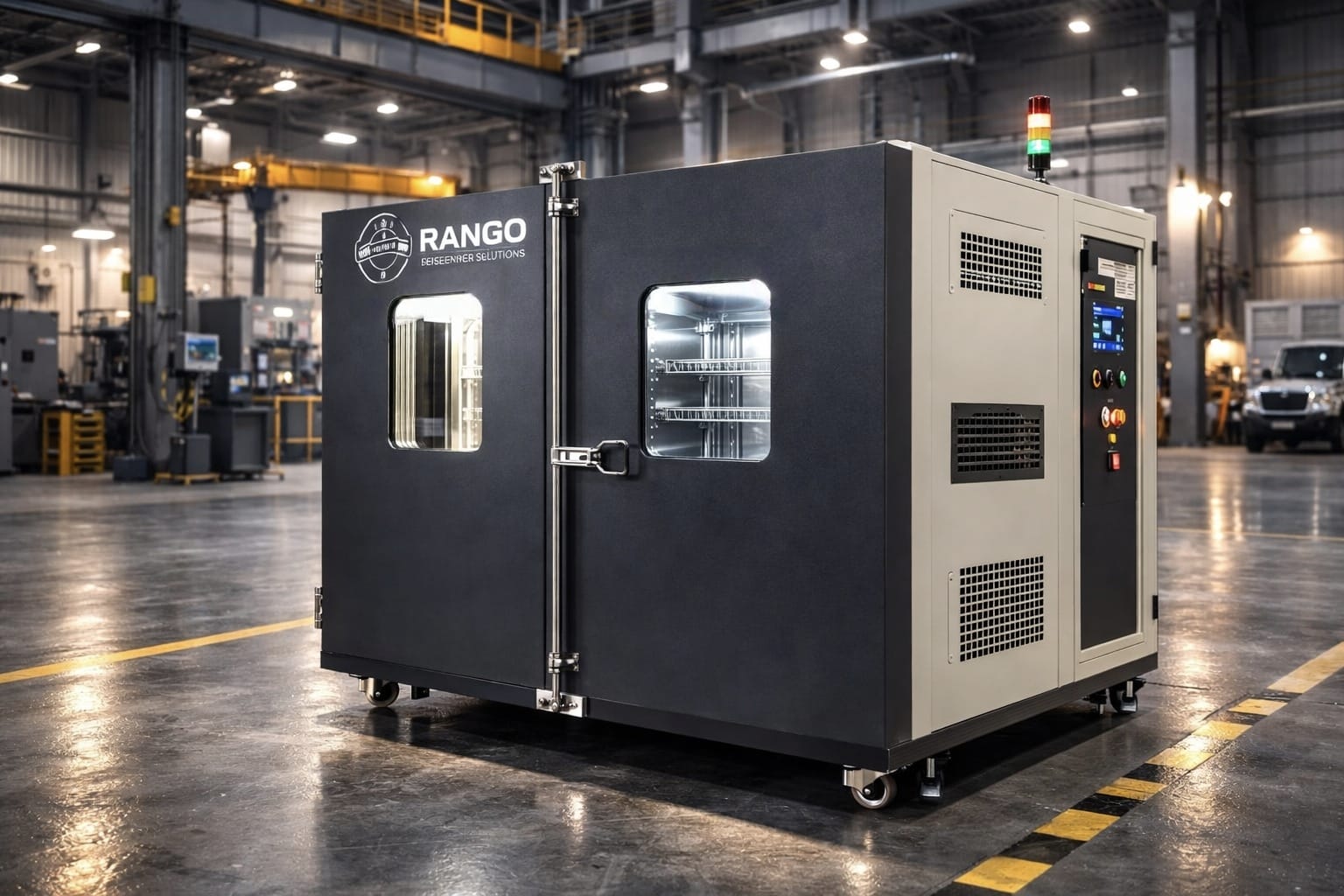

Environmental Test Chamber
- Temp Range: -70°C to +180°C
- Precision: ±0.5°C to 1°C accuracy | ±1.5°C uniformity
- Ramp Rates: 20°C/min Cooling | 20°C/min Heating
- Refrigeration: Cascade Bitzer (Germany) | CFC-Free R404A/R23
- Build: TIG-welded SS304 interior | MS Powder-coated exterior
- Insulation: 100mm Non-flammable Rockwool (96kg/m³)
- Access: Ø75mm side port hole with silicone closure
- Storage:Removable SS304 loading trays

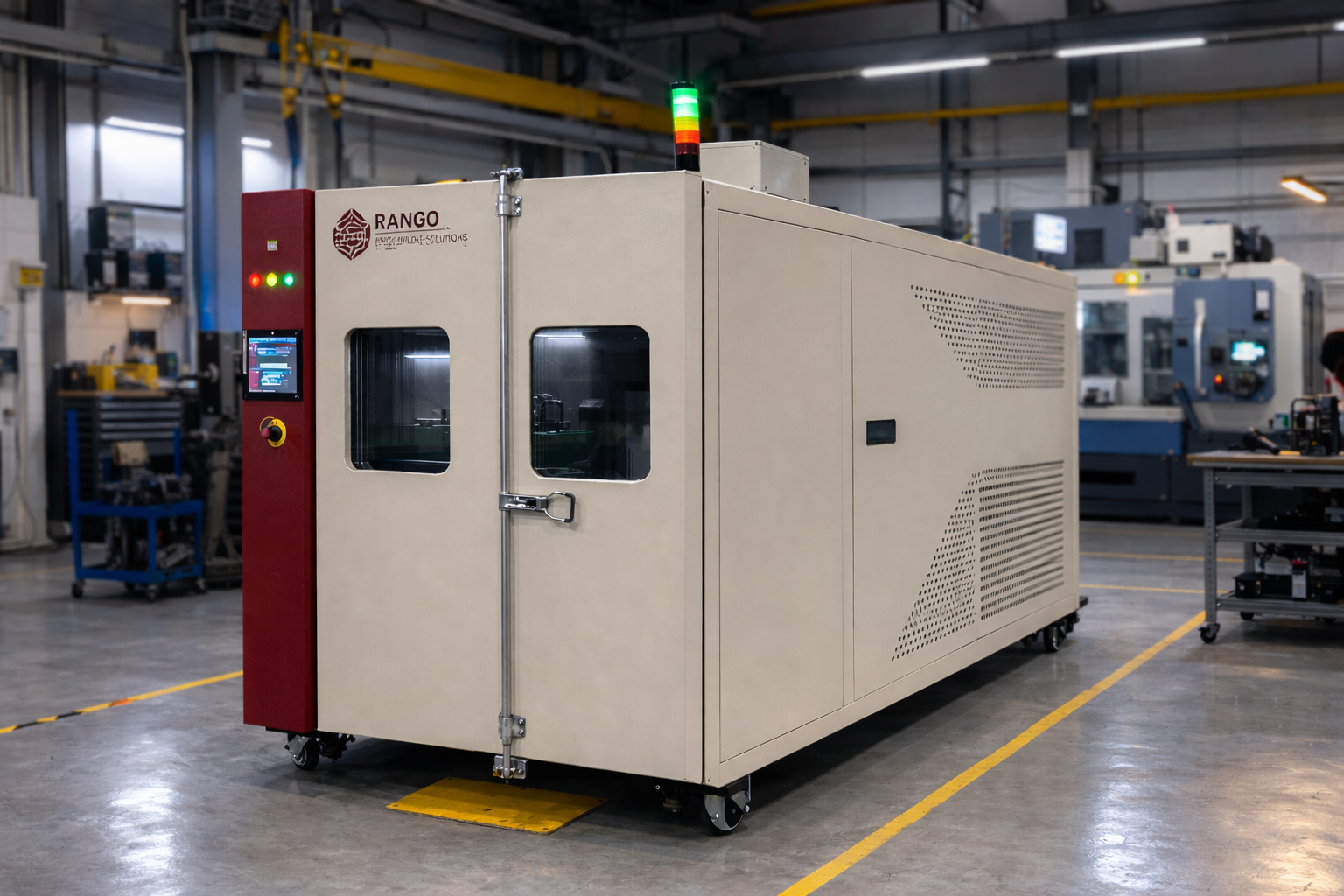

Walkin Test Chamber
- Climate Precision: Range of -60°C to +180°C with 10% to 98% RH via steam purging.
- Marine-Grade Cooling: Sea Water Cooled & Air Cooled Bitzer/Danfoss (Germany) refrigeration with CFC-free gas.
- Reinforced Build: Vapor-tight SS304 interior with ISMC channel-reinforced base and non-skid flooring.
- Advanced Control: Eurotherm 2604 Programmable PID Controller with Rotronics capacitive probes.
- Enhanced Access: Dual 100mm port holes and a triple high-performance fan system for uniform airflow.

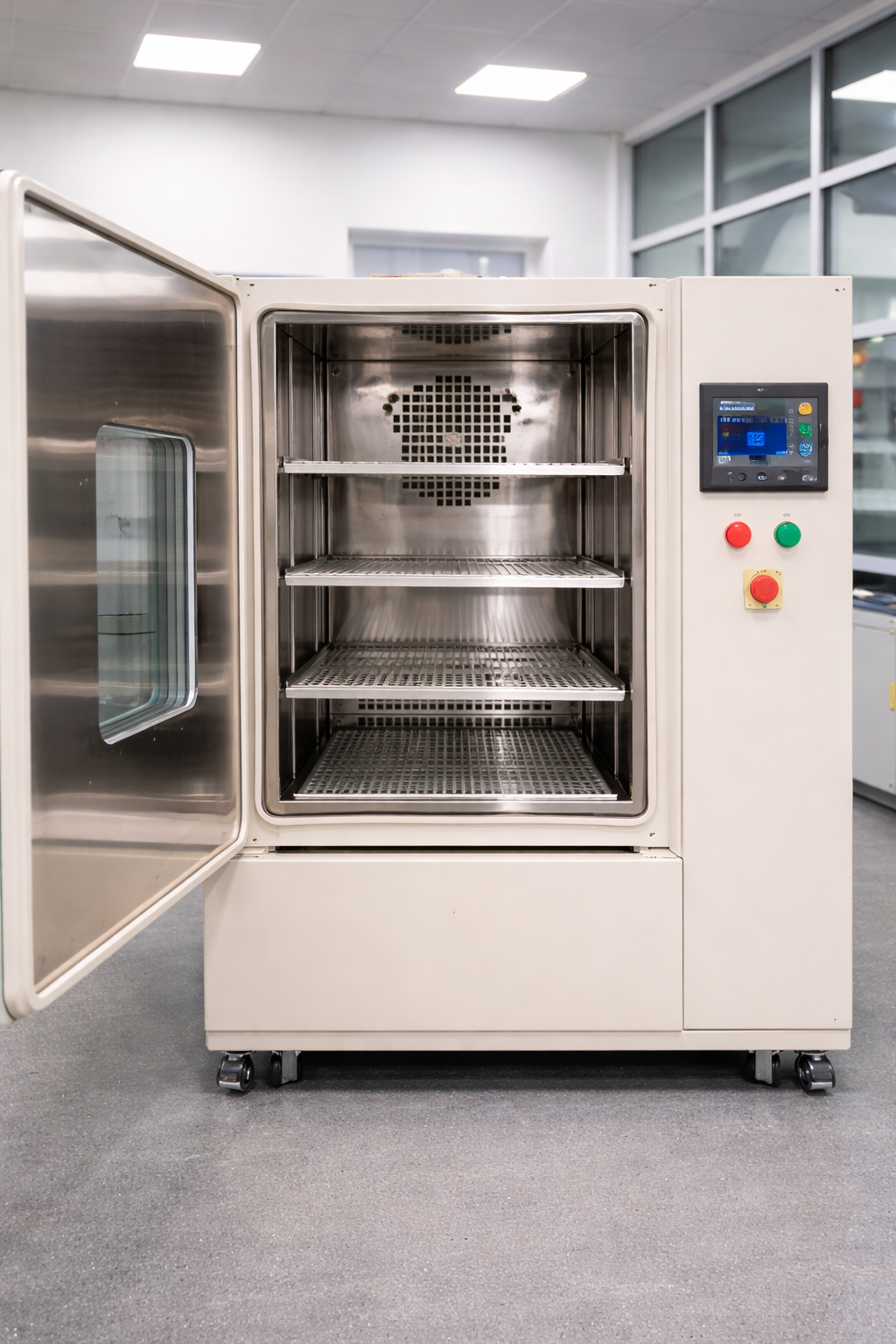

Carbonation test Chamber
- Capacity & Control: 1000L volume with precise +10°C to +60°C range and ±0.1°C measurement accuracy.
- Climate & CO2 Mastery: Integrated 40%–95% RH humidity control and 0–20% CO2 regulation with automatic baseline correction.
- Advanced Sensing: Features Rotronics Platinum Resistance sensors and aSense CO2 transmitters for ultra-stable environmental monitoring.
- High-Spec Build: TIG-welded SS304 vapor-tight interior with 100mm high-density rockwool insulation and a mobile trolley base.
- Complete System: Includes an Emerson Copeland refrigeration unit, Inconel heating system.

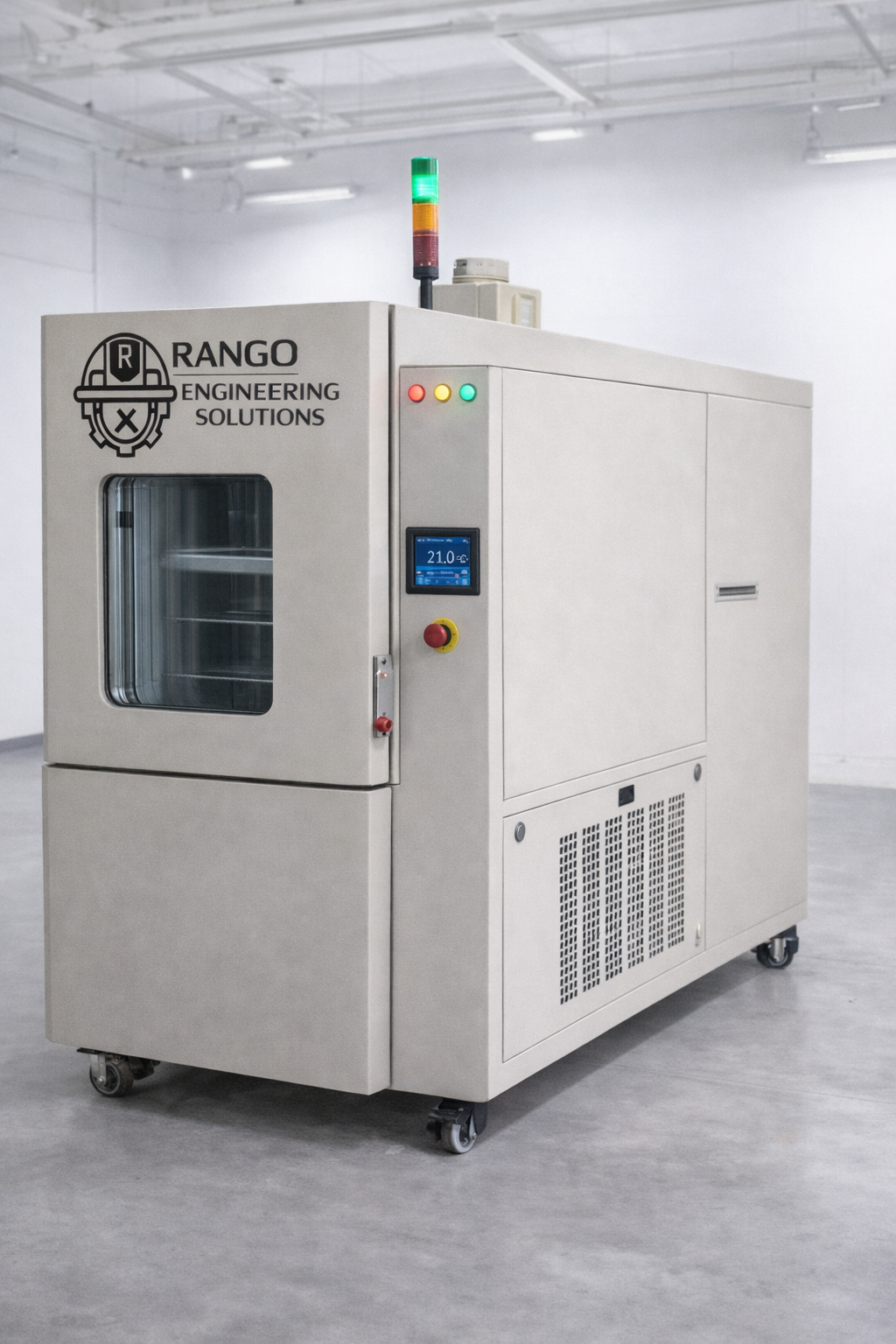

Humidity Chamber
- Precision Climate Control: Stable +20°C to +50°C range with ±1°C accuracy and ±1.5°C uniformity.
- Advanced Humidity System: Maintains 50%–70% RH via air atomizers and Rotronics capacitive probes for ±2% stability.
- Premium Refrigeration: Equipped with an Air Cooled Emerson Copeland/Bitzer (Germany) system using CFC-free R407C.
- Vapor-Tight Build: Features a fully TIG-welded SS304 interior and 100mm high-density non-flammable Rockwool insulation.

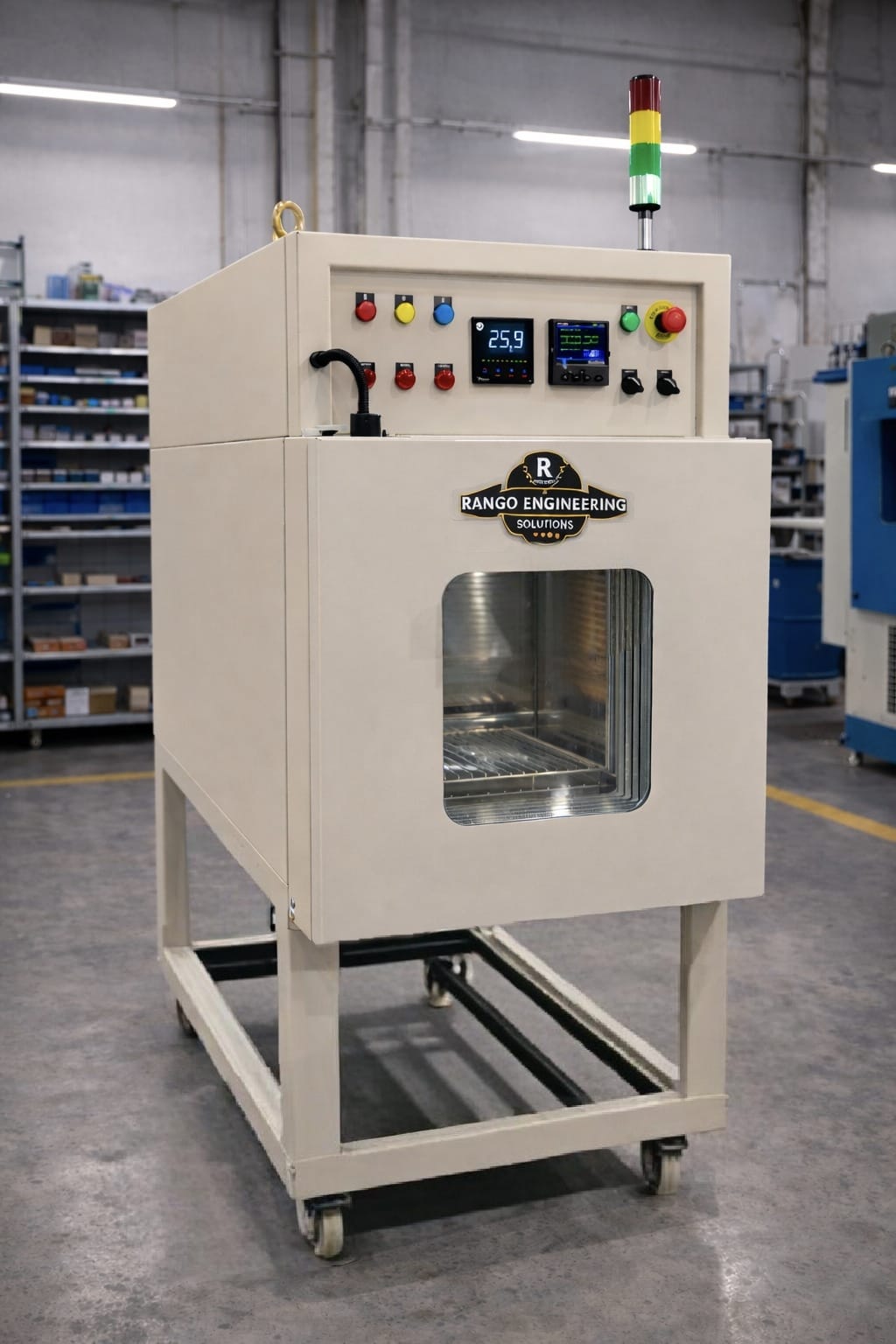

Hot Air Oven
- High-Temperature :From Ambient to +350°C with ±1.0°C control accuracy and 0.1°C resolution.
- Extreme Heat Insulation: 150mm thick high-density rockwool and ceramic felt beading ensure maximum thermal retention.
- Rugged Construction: 2mm SS304 stainless steel interior with a vibration-mounted, floor-standing mechanical structure.
- Advanced Heating & Airflow: Inconel-sheathed heaters paired with externally mounted high-performance fan motors.
- Comprehensive Safety Suite: Features an emergency stop, over-temperature protection, door interlocks.
Services
Design Modification
- Chambers can be customized as per the customer's requirements. Standard models can be modified or entirely new designs can be developed from scratch, including cosmetic changes.
- Refrigeration System Modifications
- Electrical Circuit Modifications
- Splitting Refrigeration Unit and Chamber as per installation requirements
- Customization of Standard Models
- Development of Completely New Chamber Designs
- Cosmetic and Structural Changes
Refurbishment
- Chamber refurbishment involves revitalizing existing chambers to extend their lifespan.
- Improves operational safety and enhances the overall functionality of the chamber.
- Our goal is to restore chambers as close as possible to their original condition.
- Refurbishment includes reassembling and replacing worn or damaged components.
- This process ensures the equipment is restored to full working condition.
- Fabrication
- Painting
- Componentry Repair / Replacement
Calibration
- We provide NABL traceability calibration certificates.
- Calibration is the process of comparing measurement values provided by a device under test with those of Government standards.
- This process ensures that the equipment maintains the required accuracy level.
Spares
Annual Maintenance Contract
- Annual Maintenance Contract (AMC) for environmental test chambers.
- Periodic preventive maintenance to ensure smooth and reliable operation.
- Inspection and servicing of refrigeration systems, electrical circuits, and control systems.
- Calibration verification to maintain measurement accuracy.
- Replacement of worn-out or damaged components when required.
- Technical support and quick service response to minimize equipment downtime.
- Ensures extended equipment lifespan and consistent performance.
